SRFRs Drawings
Proper installation of erosion control products is critical in the prevention of soil loss. Even the best products will not work properly if not installed correctly. You can find general installation instructions for RECPs, HECPs and SRFRs. Please contact the manufacturer with any questions you may have about the selection and installation of erosion control products and always defer to their instructions.
ECTC offers these drawings in a PDF format or a DWG format. The DWG files were created in AutoCAD 2000. Once you get the DWG files use AutoCAD 2000 or later to import the files. After the files are imported, you can make changes to them to correspond with your job requirements.
Typical Fiber Roll Installation / Installation Sheet SRFR #1
![1 Fiber Roll Installation with table Layout1 (1) Fiber Roll Installation with table Layout](https://growthzonecmsprodeastus.azureedge.net/sites/926/2022/12/1-Fiber-Roll-Installation-with-table-Layout1-1-5d2902c8-4e1a-4ae0-851a-1d8d2cfebcb7.jpg)

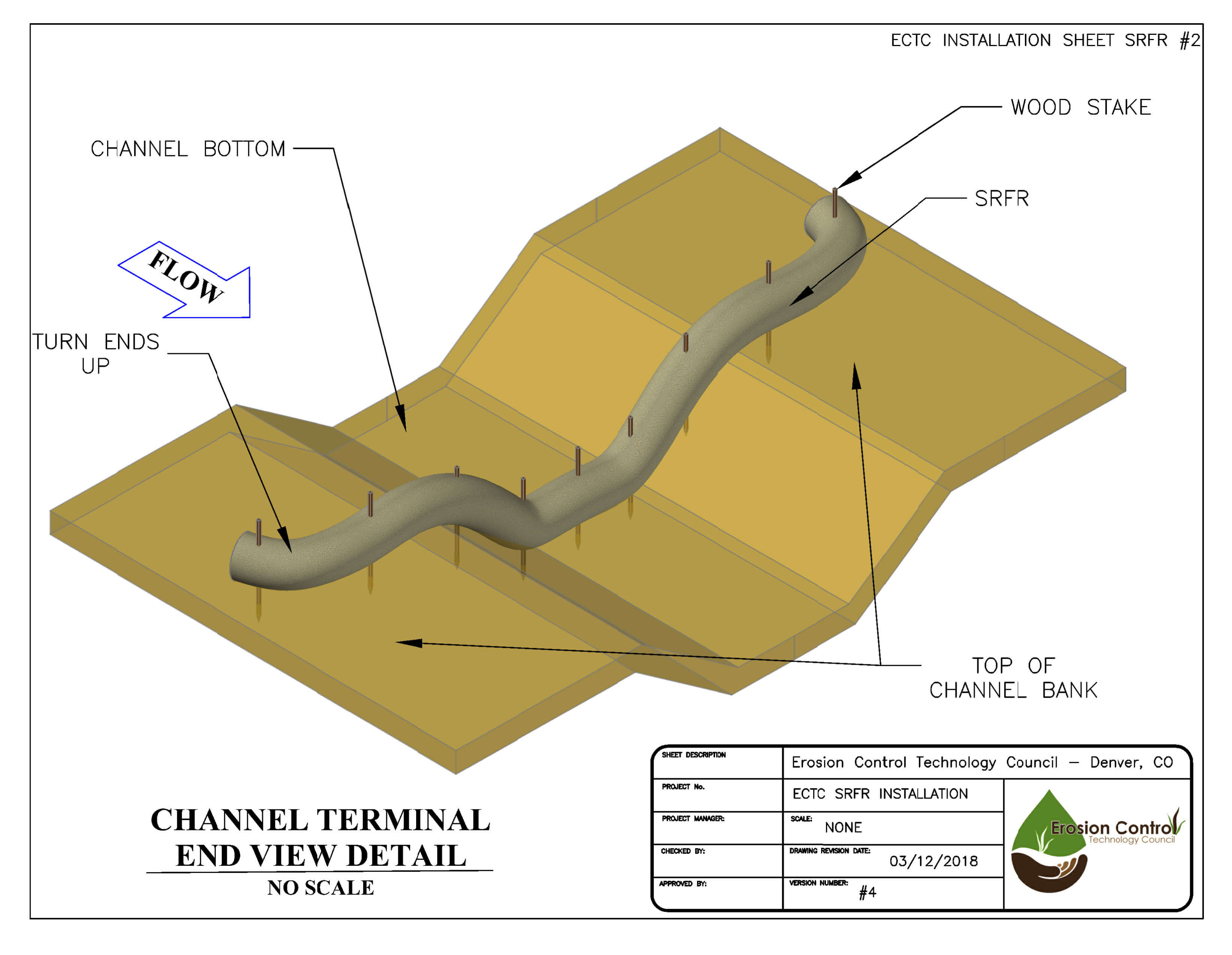

Channel Terminal End View Detail / Installation Sheet SRFR #2
![2 Channel Terminal Ends Layout1 1 Channel Terminal Ends Layout](https://growthzonecmsprodeastus.azureedge.net/sites/926/2022/12/2-Channel-Terminal-Ends-Layout1-1-e6ac9267-c305-49a3-8723-dc4ec0223d6b.jpg)
Channel Terminal End View Detail with Staking Through Netting Only / Installation Sheet SRFR #3
![3 Channel Terminal Ends with staking through netting only Layout1 1 Channel Terminal Ends with staking through netting only Layout](https://growthzonecmsprodeastus.azureedge.net/sites/926/2022/12/3-Channel-Terminal-Ends-with-staking-through-netting-only-Layout1-1-154b0f46-c08d-4c45-96ef-2303e10ce9a7.jpg)
Entrenchment Detail / Installation Sheet SRFR #4
![4 Entrenchment Detail 2 Layout 1 Cropped Entrenchment Detail 2 Layout](https://growthzonecmsprodeastus.azureedge.net/sites/926/2022/12/4-Entrenchment-Detail-2-Layout-1-Cropped-a147d752-ceba-4315-a1c6-6717526043b3.jpg)
Stake Through SRFR on RECP / Installation Sheet SRFR #5
![5 Stake Through SRFR on RECP Layout1 (1) Cropped Stake Through SRFR on RECP Layout](https://growthzonecmsprodeastus.azureedge.net/sites/926/2022/12/5-Stake-Through-SRFR-on-RECP-Layout1-1-Cropped-e10a448b-831c-4ec7-8a12-8bf76f5b519f.jpg)
Netting Only Stake Detail / Installation Sheet SRFR #6
![6 Netting Only Stake Detail On Soil Layout1 1 cropped Netting Only Stake Detail On Soil Layout](https://growthzonecmsprodeastus.azureedge.net/sites/926/2022/12/6-Netting-Only-Stake-Detail-On-Soil-Layout1-1-cropped-7c85870f-c2b6-4377-b737-01560a5e6230.jpg)
Lashed SRFR Installation Detail / Installation Sheet SRFR #7
![7 Lashed Installation Layout1 1 cropped Lashed Installation Layout](https://growthzonecmsprodeastus.azureedge.net/sites/926/2022/12/7-Lashed-Installation-Layout1-1-cropped-cdbbc7e1-f087-4e75-a092-7ff2d3626992.jpg)
Plan View Typical Overlapping Detail / Installation Sheet SRFR #8
![8 SRFR Overlaping Layout1 (1) SRFR Overlaping Layout](https://growthzonecmsprodeastus.azureedge.net/sites/926/2022/12/8-SRFR-Overlaping-Layout1-1-b8497606-035b-42cf-9949-c14caf59d66f.jpg)
Front View Stake Detail / Installation Sheet SRFR #9
![9 stake detail Layout1 1 stake detail Layout](https://growthzonecmsprodeastus.azureedge.net/sites/926/2022/12/9-stake-detail-Layout1-1-de7e9546-3e81-4449-8966-d4d45c53f340.jpg)
Plain View Typical Connection of Excelsior SRFR / Installation Sheet SRFR #10
![10 Excelsior connection Layout1 (1) Excelsior connection Layout](https://growthzonecmsprodeastus.azureedge.net/sites/926/2022/12/10-Excelsior-connection-Layout1-1-ee8a726f-ff16-43d4-a1ee-edcad1bbc746.jpg)
